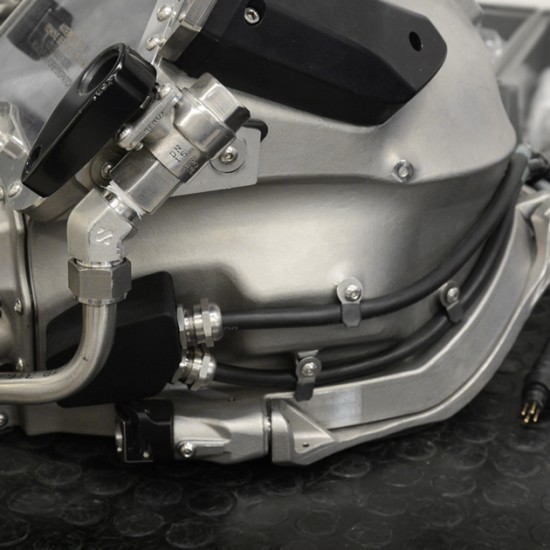

Helmet Light with internal cable routing

Compact and slim light module, completed with a connectorized cable available with two different end connector versions: Wetcon MCIL-2M or Wetcon MCIL- 3M , ready to be installed on top of the Drass D-ONE diving helmet. It is the ideal companion for the helmet camera. Maximum depth 300 msw. The core of the light is a new high performance, round led cluster including 4 cool white leds, delivering a total of 940 lumens at full power. Color temperature Is cold white (5650 K typical). The led cluster is completed with a circular narrow beam optic with 10° aperture, capable to increase by more than 10 times the light intensity of the beam, so to be able to light even far spots - 4000 lux @ 1m typical intensity. The led cluster is supplied by and internal driver, which can be powered directly with a continuous 12Vdc or 24 Vdc maximum power (typical power 10W), or with a dimmed power to be able to control the light intensity from 0% to 100%. This is possible thanks to the capability of the driver to be controlled by means of PWM (Pulse Width Modulation) power supply in CV Mode (Constant Voltage). The light intensity can be regulated also by a PWM signal (valid only for 3 pins connector version). – ask Drass for details The light is made with black anodized aluminum, and it has very limited dimensions: 143 mm length, 70 mm wide and only 50 mm height; moreover, the camera body is bent on the right so to perfectly align with the eyeline of the diver when installed on the D-ONE. Each light has its own SN and is subject to a complete FAT (functional test and pressure test
