Maintenance And Renewal Kit

Maintenance And Renewal Kit
New
Maintenance And Renewal Kit
  • Stock: In Stock
  • Brand: Drass
  • Model: 140-00005-L
Based on 0 reviews. - Write a review
829.00€
Add to Cart
Quotation Request
Add to Wish List Compare this Product

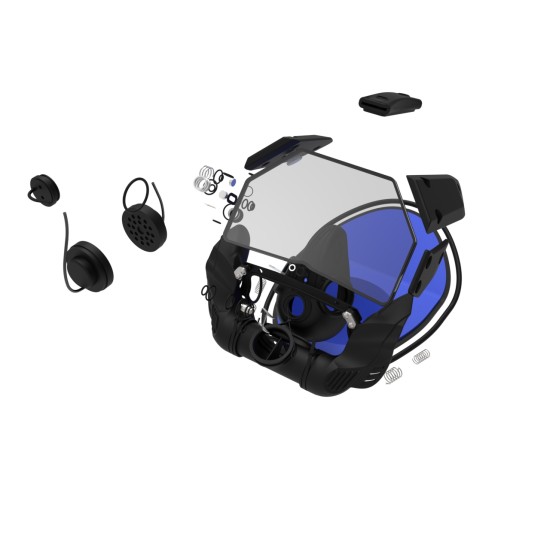

The Kit includes:


ItemPart No.Q.ty
O-RING141-0051
WASHER
140-506
2
UPPER GRIP HANDLE
140-203
1
LOWER GRIP HANDLE
140-202
1
FACE PORT
140-308
1
FACE PORT ORING
140-309
1
NOSE BLOCK PLATE
140-409
1
O-RING
140-405
2
O-RING
140-406
1
NOSE BLOCK CUSHION
140-410
1
PORT HANDLE SPRING
141-114
1
PULL PIN SPRING
141-107
2
SEEGER
141-108
2
STARBOARD COVER
142-901
1
EXTERNAL PLUG
145-101
1
INTERNAL PLUG
145-102
1
O-RING
145-103
2
EXHAUST VALVE
142-203
2
O-RING
142-109
1
O-RING
140-710
6
EXHAUST SYSTEM ASSEMBLY
142-200
1
GASKET, POD
142-116
1

ORAL NASAL ASSEMBLY

142-100
1
O-RING
150-104
1
MEBRANE
151-016
1
O-RING
150-608
1
O-RING
150-607
1
LOCKING RING
150-611
1
O-RING
150-703
1
SPRING
150-704
1
SEAL SEAT
150-705
1
REGULATOR MAIN DIAPHRAGM
150-500
1
LEVEL FORK
151-001
1
NOZZLE
150-900
1
O-RING
151-009
1
O-RING
151-010
1
O-RING
151-019
1
O-RING
140-601
1
NECK DAM ASSEMBLY
140-640
1
SPRING
140-625
1
O-RING
143-045
2
EARPHONE ASSEMBLY RIGHT
143-030
1
EARPHONE ASSEMBLY LEFT
143-050
1
MICROPHONE ASSEMBLY
143-130
1
O-RING
140-810
2
O-RING
140-805
1
O-RING
140-809
4
O-RING
140-709
1
O-RING
140-745
1
O-RING
140-744
1
SPRING
140-747
1
O-RING
140-703
1
FLAT GASKET SIDE BLOCK
140-736
1
SEAT DEFOGGER TABLET
140-752

1

O-RING
140-715
2
O-RING
140-716
2
KNOB SPRING
140-719
2
EMERGENCY SEAT TABLET
140-754
1
O-RING
140-705
1
FLAT GASKET
140-739
1
PORT BUMPER
142-701
1
PORT COVER
142-801
1
STARBOARD HANDLE SPRING
141-113
1
HEAD CUSHION ASSEMBLY
141-800
1


Maintenance
Period 5 years
